PCAN-PCI/104-Express：PCI/104-Express轉CAN接口卡

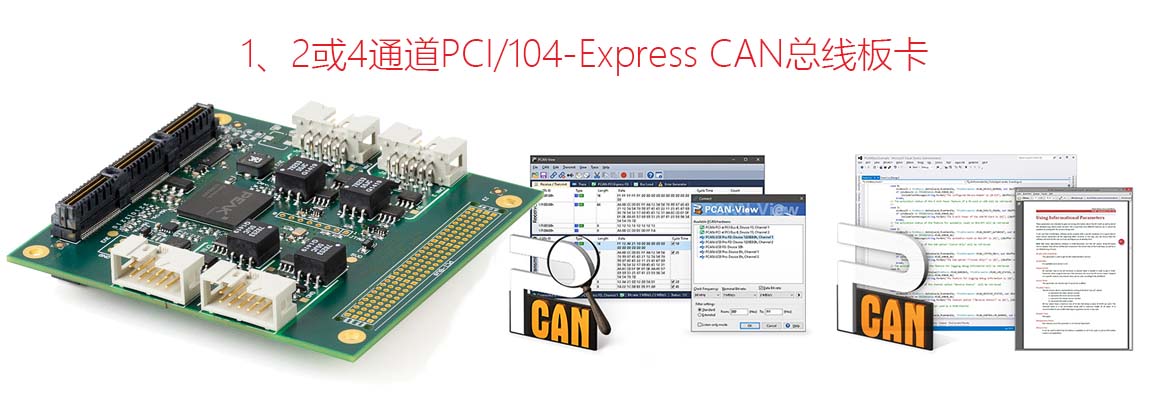

PCAN-PCI/104-Express CAN卡可連接一個、兩個或四個CAN總線到PCI/104-Express系統。可把最多4個CAN卡堆疊在一起。連接CAN總線采用9-pin D-Sub接頭，該接頭安裝在插槽支架上。

該CAN卡現有單通道、雙通道和四通道版本。光電解耦版本能夠保證電腦和CAN之間的電氣隔離達到500V。

整套也包含CAN總線監視軟件PCAN-View for Windows和用于開發CAN總線連接應用程序的編程接口PCAN-Basic軟件。

規格：

PCI/104-Express CAN卡, 1路 (x1)
外形系數PC/104
最多4個卡可用在一個系統中
1、2、或4路高速CAN通道 (ISO 11898-2)
比特率從5kbit/s最大至1Mbit/s
符合CAN規范2.0A (11-bit ID)和2.0B (29-bit ID)
CAN總線連接通過D-Sub插槽支架, 9-pin (依據CiA 303-1)
CAN控制器的FPGA實施 (SJA1000可兼容)
NXP PCA82C251 CAN收發器
CAN連接器上的電氣隔離達到500 V, 分離每路CAN通道
只通過5 V線路供電
通過焊接跳接線，5伏電源可連接到CAN接口上，比如用于外部總線轉換器
擴展工作溫度范圍 -40 to 85 °C (-40 to 185 °F)
可選PCI-104堆疊貫通連接器

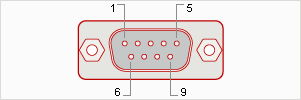

D-Sub 引腳分配圖

引腳	引腳分配
1	無連接 / 可選 +5V
2	CAN-L
3	GND
4	無連接
5	無連接
6	GND
7	CAN-H
8	無連接
9	無連接 / 可選 +5V

發貨清單：

PCAN-PCI/104-Express CAN卡
帶D-Sub接頭的插槽支架用于連接CAN總線（4通道型號有2個）
設備驅動 for Windows? 10, 8.1, 7 and Linux (32/64-bit)
PCAN-View for Windows?CAN總線監視軟件
PCAN-Basic編程接口用于開發CAN總線連接應用程序
汽車領域標準化協議編程接口
PDF格式的說明書

訂貨信息

說明	貨號
PCAN-PCI/104-Express單通道	IPEH-003054
PCAN-PCI/104-Express單通道光解耦	IPEH-003056
PCAN-PCI/104-Express雙通道光解耦	IPEH-003057
PCAN-PCI/104-Express四通道	IPEH-003058

下載

Device driver setup for Windows PEAK-System installation package for device drivers and tools for Windows? 10, 8.1, 7 (32/64-bit) for our PC interfaces.	Download
Device driver for Linux Device drivers for PEAK CAN interfaces from Kernel 2.4 and higher.	Website
PCAN-PC/104-Express manual	English
PCAN-View Windows? software for displaying, transmitting, and recording CAN and CAN FD messages	Download
PCAN-Basic API API for the development of applications with CAN and CAN FD connections for Windows? 10, 8.1, 7 (32/64-Bit)	Download
PCAN-Basic API (Linux) API for the development of applications with CAN connection for Linux	Download
PCAN-CCP API API for the development of software for the communication with ECUs according to the CAN Calibration Protocol (CCP)	Download
PCAN-XCP API API for the development of software for the communication with ECUs according to the Universal Measurement and Calibration Protocol (XCP)	Download
PCAN-ISO-TP API API for the transfer of data packages according to ISO-TP (ISO 15765-2)	Download
PCAN-UDS API API to communicate with control devices according to UDS (ISO 14229-1)	Download
PCAN-OBD-2 API API for the vehicle diagnostics according to OBD-2 (ISO 15765-4)	Download
PCAN-PassThru API Pass-Thru API and connection of Pass-Thru software to PEAK CAN interfaces. Installation for Windows? 10, 8.1, 7 (32/64-bit) includes interface DLLs, a configuration software, the PCAN-Basic API, and the PCAN-ISO-TP API. The download also contains the documentation (English).	Download
Windows 2000 package Device drivers for Windows? 2000 and the CAN monitor PCAN-View.	Download
BaudTool Windows? software for calculating the BTR0/BTR1 baud rate register	Download

更多信息

PEAK-System Forum: Section for the PCAN-PCI/104-Express card for questions and support
CAN device driver 4.x version history
