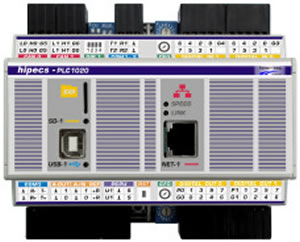

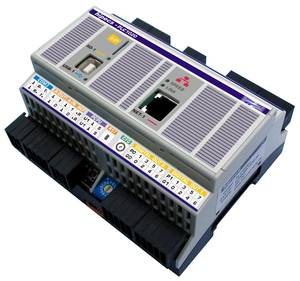

新一代hipecs控制器在緊湊型外殼內提供高性能PLC系統。它提供強大的CoDeSys PLC、CANopen主站或從站以及串口圖形 (SGI)，可在VISU面板上可視化你的流程。與以前的系統最大的不同是，hipecs現在提供USB端口。文件系統可通過SD卡和以太網接口進行擴展以集成到網絡。內部網絡服務器提供單獨網絡可視化平臺。email客戶端可免費自動發送可編程的email，F(xiàn)TP服務器提供訪問PLC文件系統。
系統
- Infineon XE169 16-Bit CPU
- 2000 operations / ms
- internal file system
- 3 MByte program memory
- 1 Mbyte data memory
- SD-Card up to 4 GByte
- 4 kByte Retain-Speicher
- RTC
- operating voltage 24 Volt
- WAGO type 713 - connectors
- temperature range 0..55°C
- plastic housing for DIN-rail mounting 108x125x60mm (incl connector)
數字輸入
- 16 inputs 24 Volt (12V on request)
- reverse polarity protected
- input frequency range 0 .. 100 kHz
- status-LEDs for status indication
- special function: 6 interrupts, 3 encoder channels, 1 event counter
數字輸出
- 16 outputs (24 Volt)
- output current?@ 25°C: 8x0,5 A / 8x0,1 A permanently
- peak output current: 8x1,5 A / 8x0,35 A (<1,5 sec)
- voltage switching?and?short circuit protected
- status-LEDs for status indication
- special functions: stepper motor?and PWM
模擬輸入
- 2 analog voltage inputs 0..10,5 Volt
- 10 bit resolution
- reverse polarity protected
模擬輸出
- 2 analog?voltage outputs?0..10 Volt
- 10 bit resolution
- max. 5 mA output current
- short circuit protected
- 1 reference voltage output 10 Volt
CANopen
- 2 CAN busses?accrding to?ISO11898
- galvanic separation
- baudrate?up to?1 MBit
- nodenumber?0..127
- CANopen Draft Standard DS301 V4, DSP302 V3.0, DS401 V2.1 und?DSP405 V2.0
- 250 transmit/receive PDO (master mode)
16 transmit/receive PDO (slave mode)
- dynamic PDO mapping
- variable PDO identifier
- emergency
- nodeguarding / life guarding / heartbeat / sync
- client SDO transfer
接口
- 1x USB programing and debug interface
- 1x USB channel for direct access to the file system shell via PC
- 2x RS232, 1x RS422/485
- 1x Ethernet: email client (SMTP), FTP server, webserver, TCP/UPD socket communication (CODESYS library)
訂貨說明
| ? 貨號 |
名稱 |
ethernet |
USB接口 |
外殼 |
PT100/PT1000 |
| EZ00000.1810.00 |
hipecs PLC1010 |
無 |
1 |
塑料 |
無 |
| EZ00000.1820.00 |
hipecs PLC1020 |
有 |
1 |
塑料 |
無 |
| EZ00000.1830.00 |
hipecs PLC1030 |
有 |
2 |
塑料 |
無 |
| EZ00000.1910.01 |
hipecs PLC1210 |
無 |
1 |
塑料 |
有 |
| EZ00000.1920.01 |
hipecs PLC1220 |
有 |
1 |
塑料 |
有 |
| EZ00000.1930.01 |
hipecs PLC1230 |
有 |
2 |
塑料 |
有 |
|
